Visual Query Builder

RoleAnalystRead10 min

Route: /logs → Query Builder button

Don't want to hand-write SQL? The Query Builder assembles the query for you: pick table, columns, filters, and aggregations, and see the generated **Presto SQL** in real time before running it.

What it's for

Build SQL queries visually and learn what each control generates. Great for discovering columns and for analysts new to SQL.

Steps

  1. 1

    In LOGS, click Query Builder.

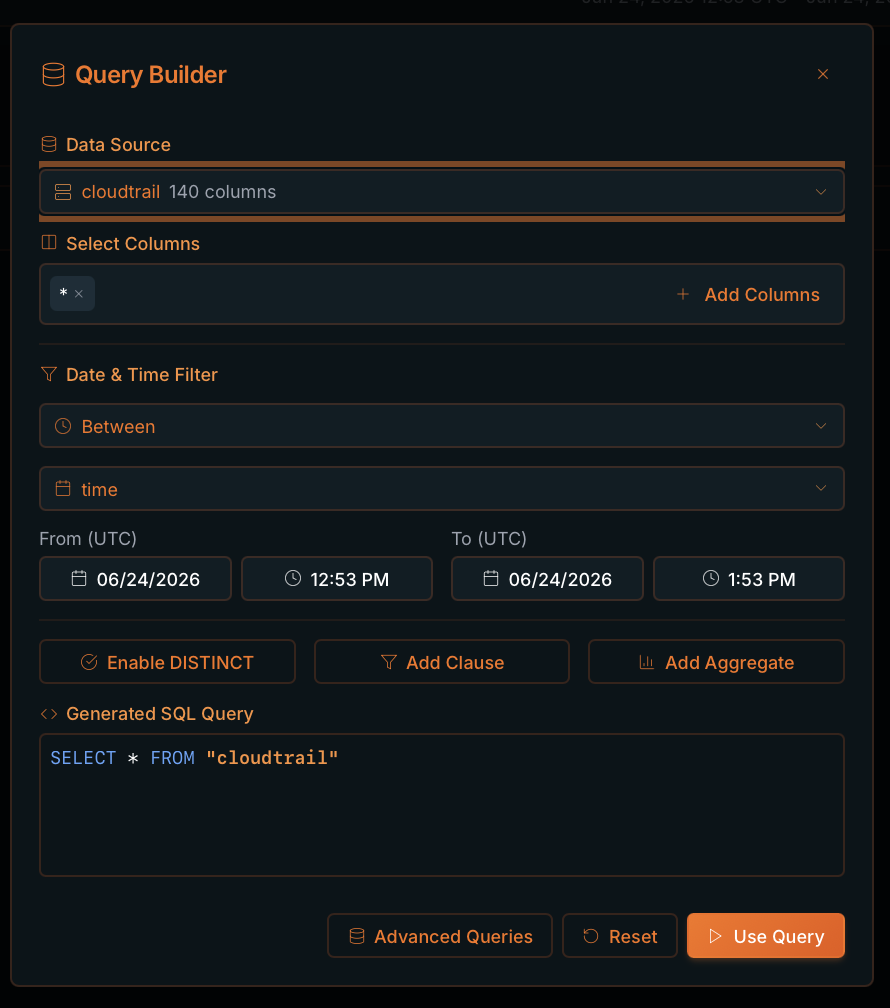

    Full Query Builder modal with Data Source, Select Columns, Date & Time Filter and generated SQL
    Query Builder: all controls and the live generated SQL.
  2. 2

    Pick the Data Source (an integration's table).

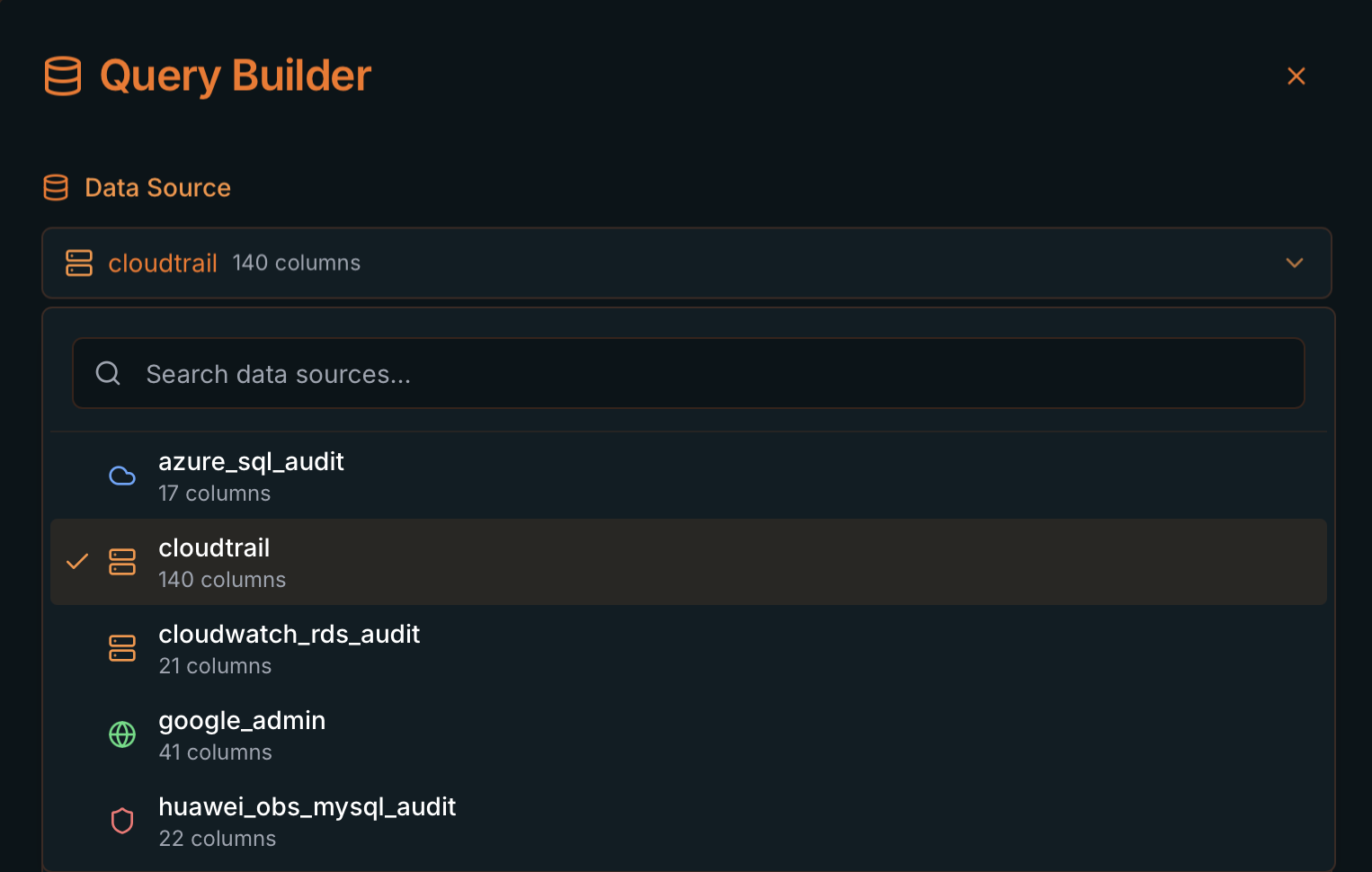

    Data Source selector with cloudtrail, azure_sql_audit, cloudwatch_rds_audit, google_admin
    Data Source: pick the table; the counter shows how many columns it has.
  3. 3

    In Select Columns, choose specific columns or leave * for all.

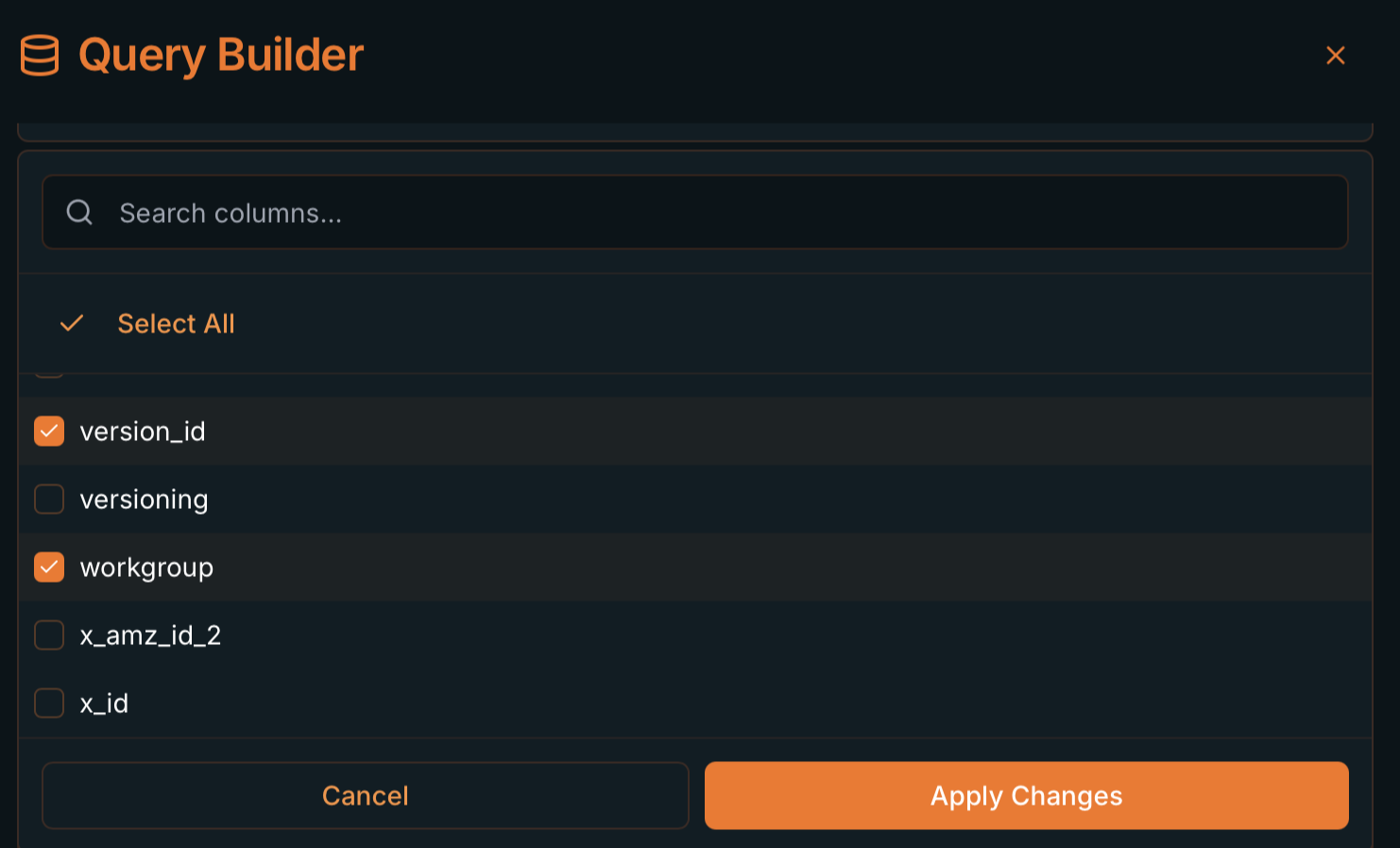

    Query Builder column picker with search, Select All and Apply Changes
    Select Columns: search, check, and don't forget Apply Changes.

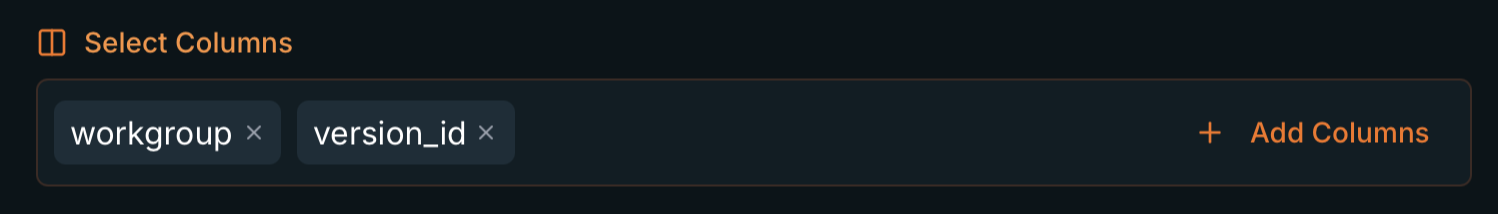

    Selected columns shown as chips, removed with the X
    Chosen columns appear as chips; remove them with the ×.
  4. 4

    (Optional) Configure the Date & Time Filter (Between over the time column, with From / To in UTC).

  5. 5

    (Optional) Enable DISTINCT, Add Clause (WHERE / GROUP BY / ORDER BY / LIMIT) and/or Add Aggregate.

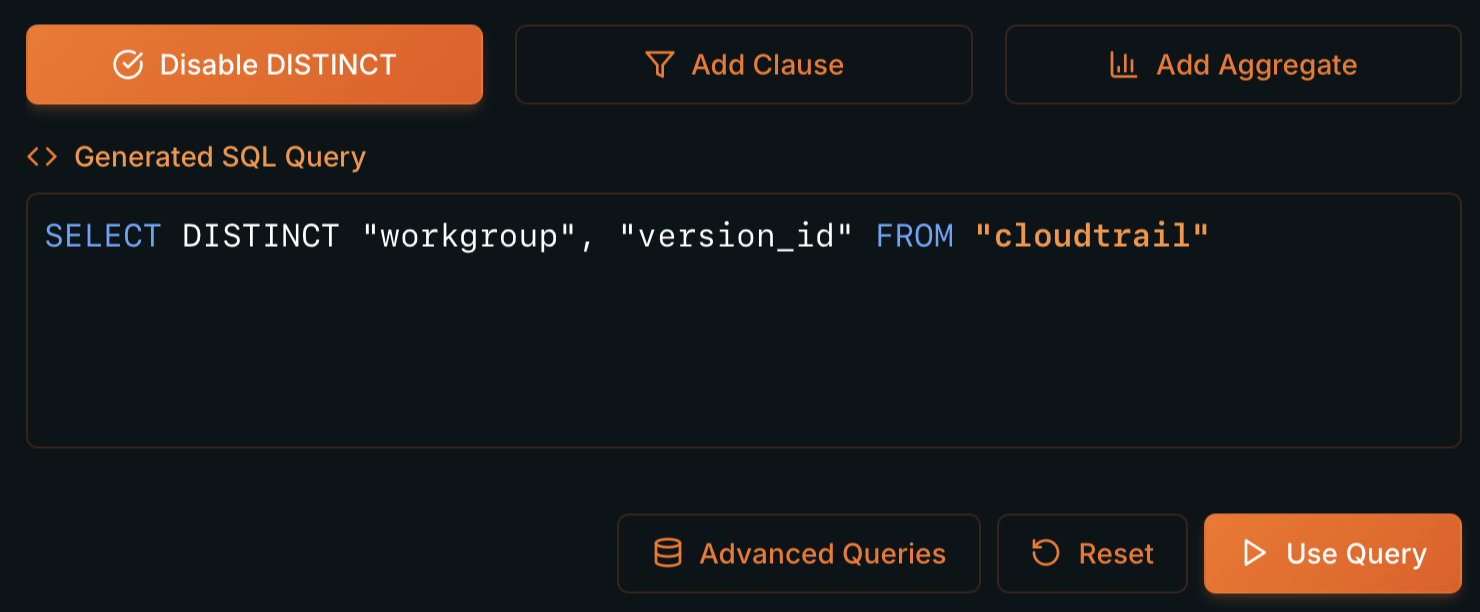

    DISTINCT enabled generating SELECT DISTINCT workgroup, version_id
    DISTINCT: SELECT DISTINCT "workgroup", "version_id" FROM "cloudtrail".

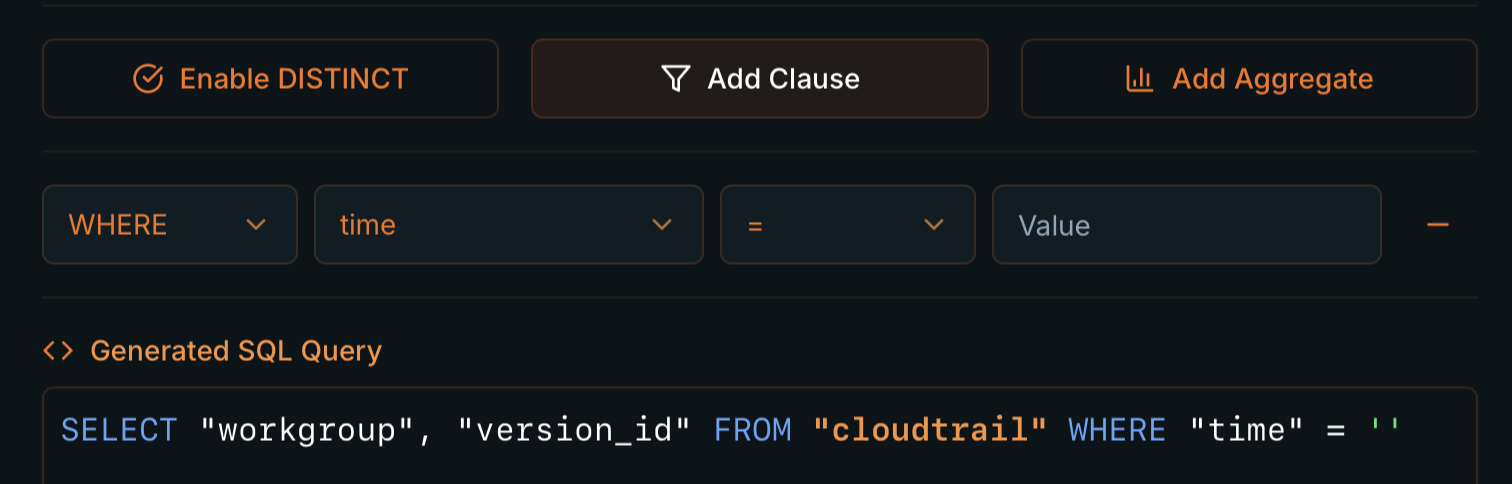

    Add Clause of type WHERE with column, operator and value
    Add Clause: WHERE filters (column, operator, and value).

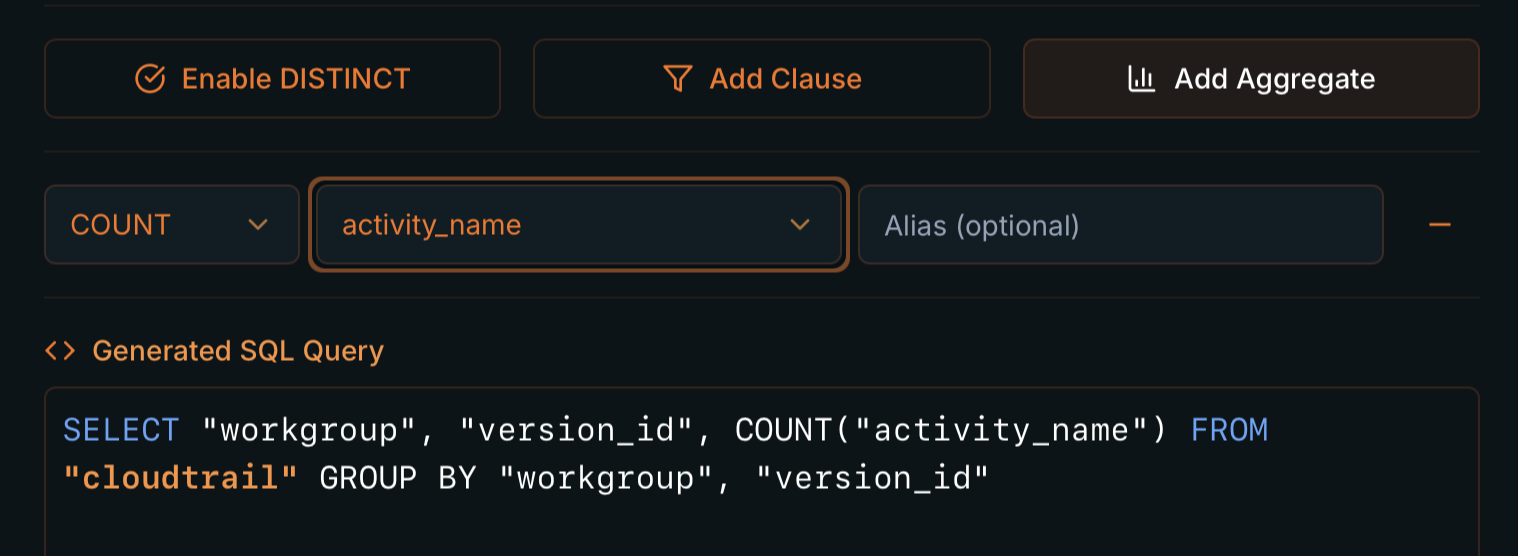

    Add Aggregate with COUNT(activity_name) and generated GROUP BY
    Aggregation: COUNT("activity_name") with its automatic GROUP BY.
  6. 6

    Review the Generated SQL Query block (updates automatically).

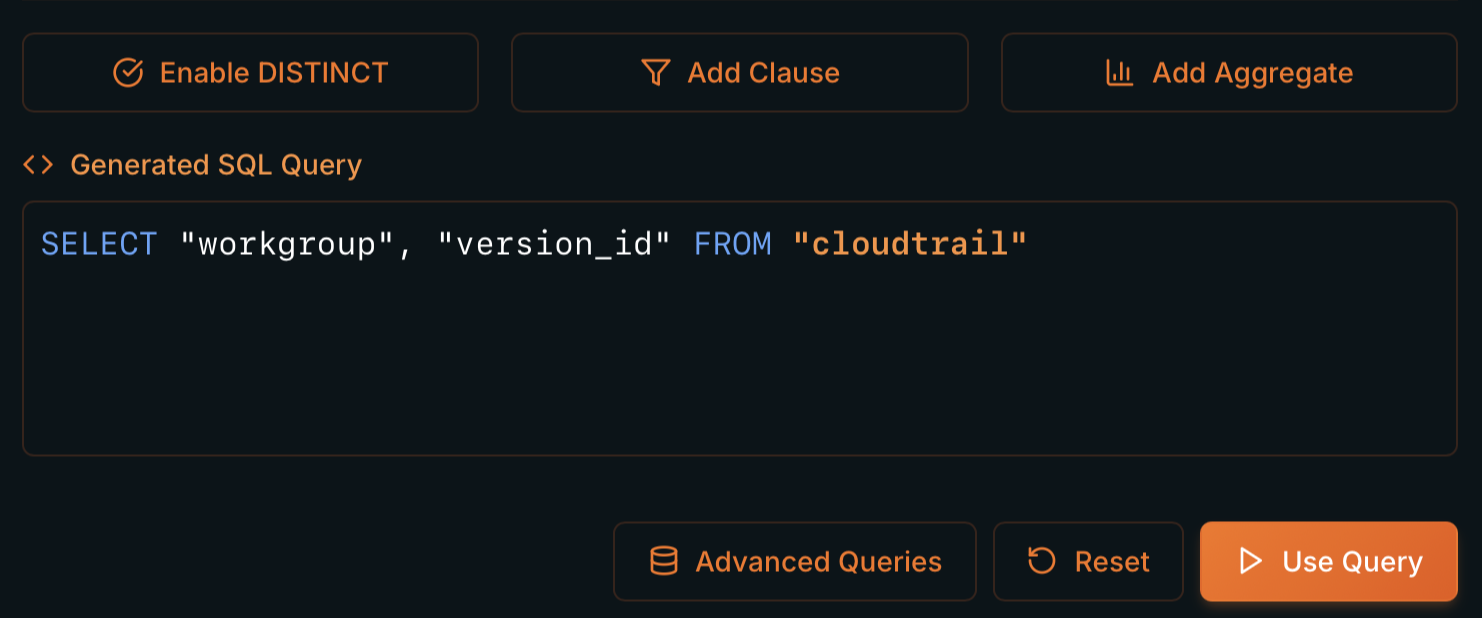

    Generated SQL Query block with the resulting query
    Generated SQL Query: the exact Presto SQL that will run.
  7. 7

    Click Use Query to send the SQL to the editor, then Run Query.

Expected result

  • ✓The editor is populated with the generated query, ready to run.
  • ✓You can keep tweaking the SQL by hand if you need something more advanced.

Tips

  • Use the Query Builder to discover the columns of a new source, then refine the SQL by hand.
  • The generated SQL is standard Presto: you can copy it, version it, or turn it into a detection rule.

1 · Data Source (the table)

  • Each integration exposes a table with its own column set, e.g. cloudtrail (140 columns), google_admin (41), cloudwatch_rds_audit (21), huawei_obs_mysql_audit (22), azure_sql_audit (17).
  • Use Search data sources... to find the source and check the column counter to gauge the table's size.

2 · Select Columns

  • Add columns as chips (e.g. workgroup, version_id) with Add Columns, or leave * to return all.
  • The picker has Search columns... and Select All for sources with many columns.

3 · Date & Time Filter

  • Type Between over the time column, with From (UTC) and To (UTC).
  • Equivalent to a WHERE "time" >= ... AND "time" <= ... in the generated SQL.

4 · DISTINCT, clauses, and aggregations

  • Enable DISTINCT → generates SELECT DISTINCT ... (removes duplicates).
  • Add Clause → WHERE (operators =, !=, >, <, >=, <=, LIKE, IN, NOT IN, IS NULL, IS NOT NULL), GROUP BY, ORDER BY (ASC / DESC), LIMIT.
  • Add Aggregate → COUNT, SUM, AVG, MIN, MAX over a column, with an optional Alias. Generates the matching GROUP BY.

5 · Generated SQL Query and actions

  • Generated SQL Query shows the exact Presto SQL that will run.
  • Use Query sends that SQL to the editor; Reset clears the builder; Advanced Queries opens IP Address search (see below).

Advanced Queries — IP search

  • Advanced Queries no longer includes lookup tables — those are managed in Management → Lookup Tables and inserted with Lists in the editor.
  • Today Advanced Queries offers only IP Address Search Configuration:
  • IP Address / Text Input — paste IPs or text; Grep IPs extracts IPv4 addresses and generates the query.
  • Search Mode — comprehensive (all relevant IP columns) or selective (pick columns per table).
  • Search Tables — badges to include/exclude tables with IP fields.
  • Generated SQL Query — editable preview; confirm with Apply Query.

Official documentation

  • SQL reference — SELECT ↗
  • SQL functions and operators ↗

See also

SQL Queries (Presto) →Use Cases →Lookup Tables →
